2496MHz-2690MHz 40W Final Solution

應(yīng)用方案 | 日期：2023-09-15 | 閱讀：

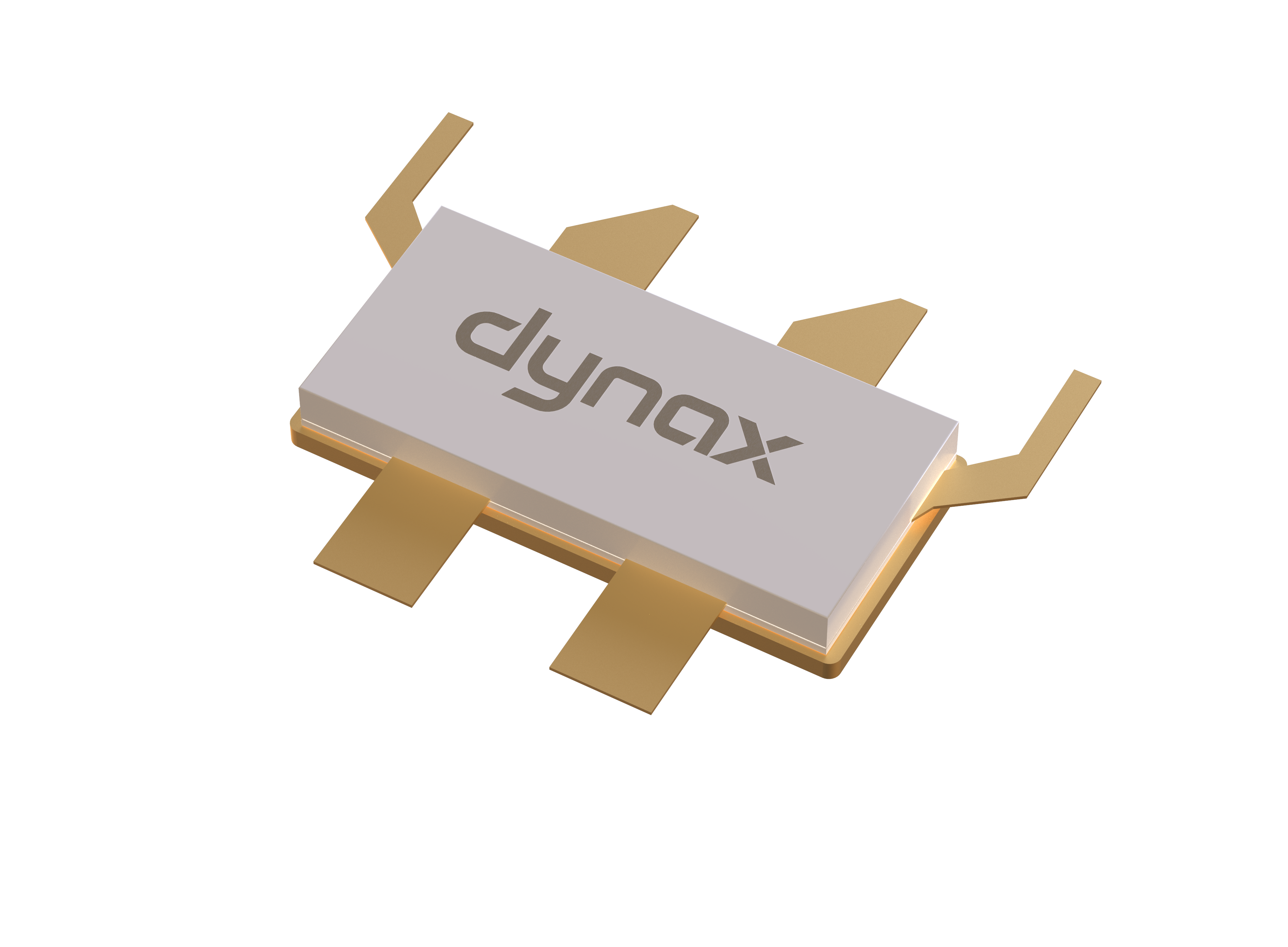

2496MHz-2690MHz 40W Final Solution(圖1)

Final:

DXG2CH27A-500EFV

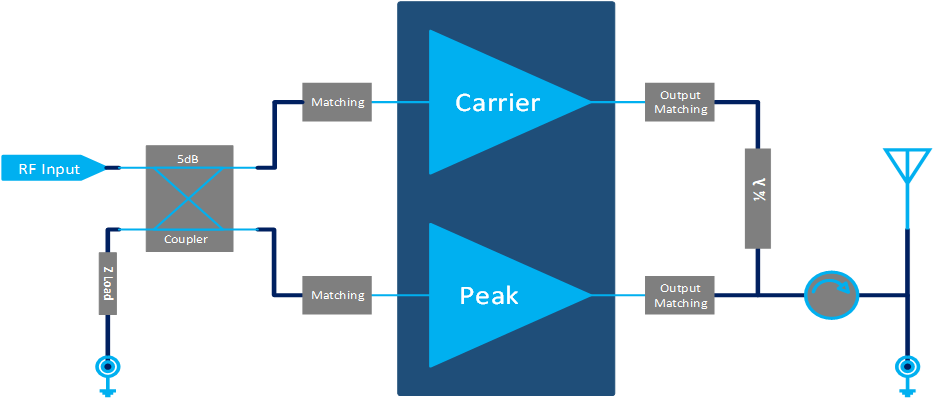

2496MHz-2690MHz 40W Final Solution(圖2)

Package Type:

Ceramic 780-4V






CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@47.2dBm

DE (%)@47.2dBm

ACLR (dBc)

@ 41.7dBm

2496

56.9

15.0

-30.0

-34

2593

56.7

15.0

-32.9

-33.8

2690

56.1

14.6

-33.6

-33.5


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator.
