4800MHz-5000MHz 20W Final Solution

應(yīng)用方案 | 日期：2023-06-30 | 閱讀：

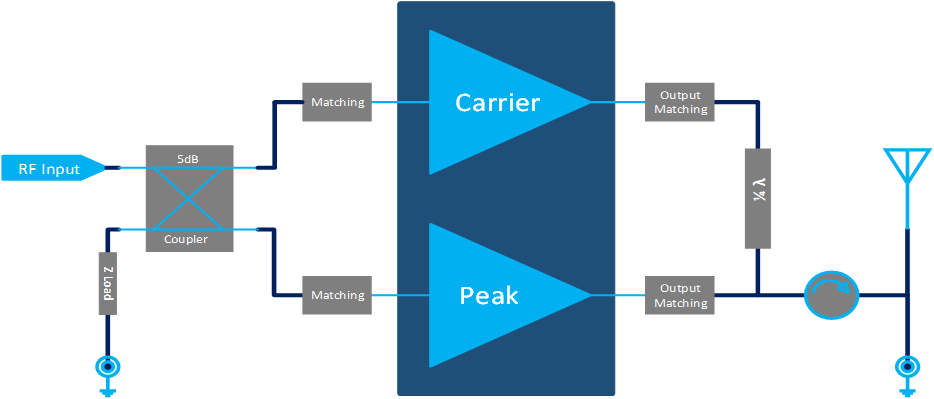

4800MHz-5000MHz 20W Final Solution(圖1)

Final:

DXG2CH50A-200EF

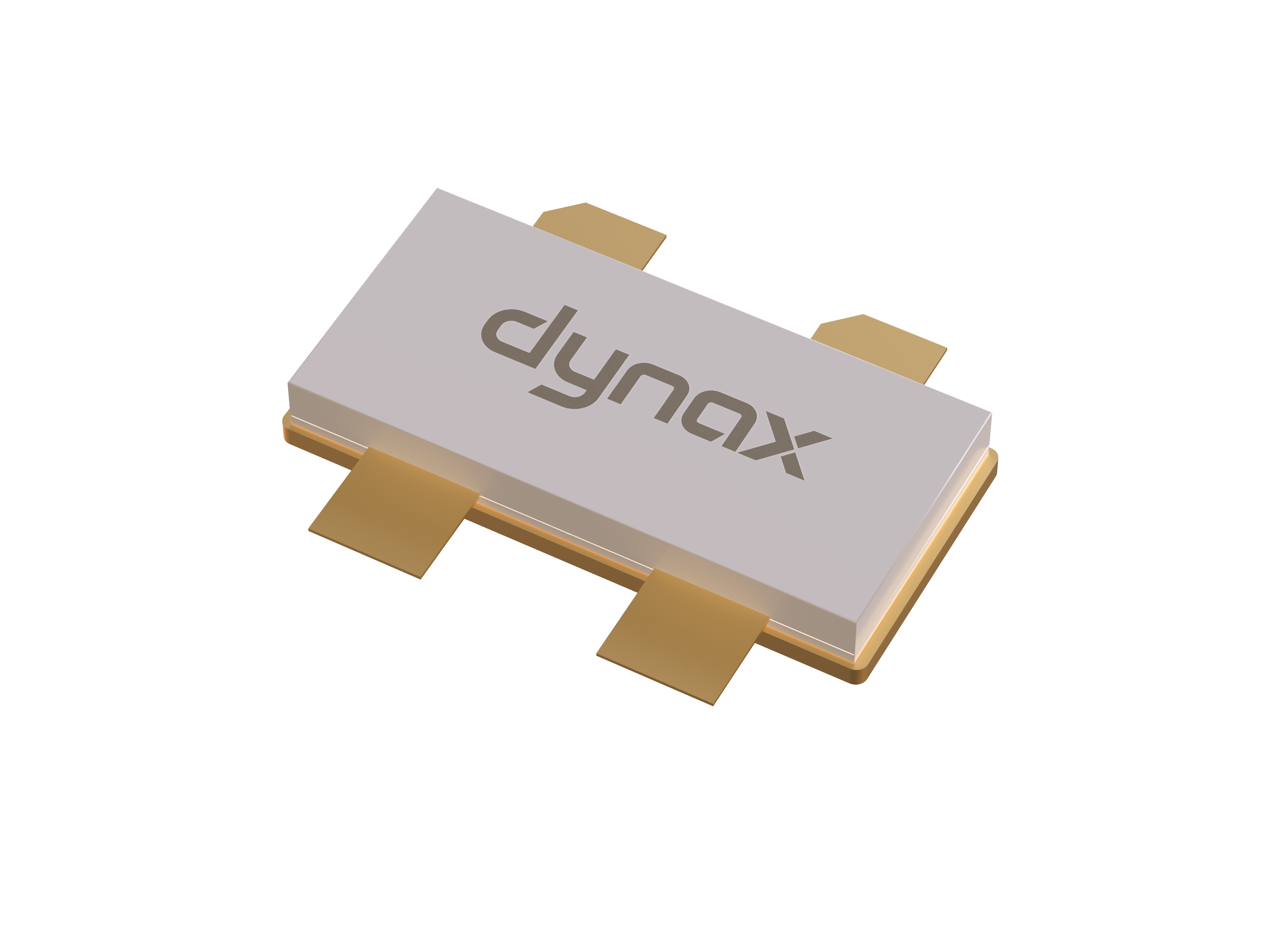

4800MHz-5000MHz 20W Final Solution(圖2)

Package Type:

780-4




CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@44.5dBm

DE (%)@44.5dBm

ACLR (dBc)@ 44.5dBm

4800 53.3 14.0 44.2 -28.5
4900 53.2 14.2 44.5 -28.5
5000 53.1 14.2 44.6 -29.0


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator.
