3400MHz-3600MHz 20W Final Solution

應(yīng)用方案 | 日期：2021-09-23 | 閱讀：

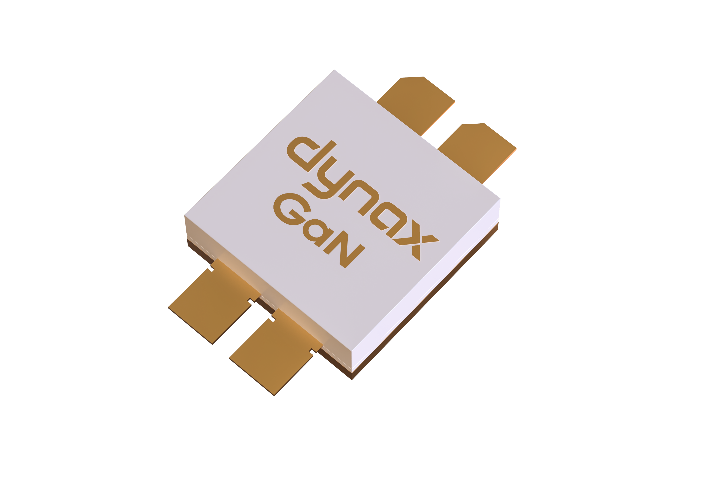

3400MHz-3600MHz 20W Final Solution(圖1)

Final:

DXG1CH38A-200EF

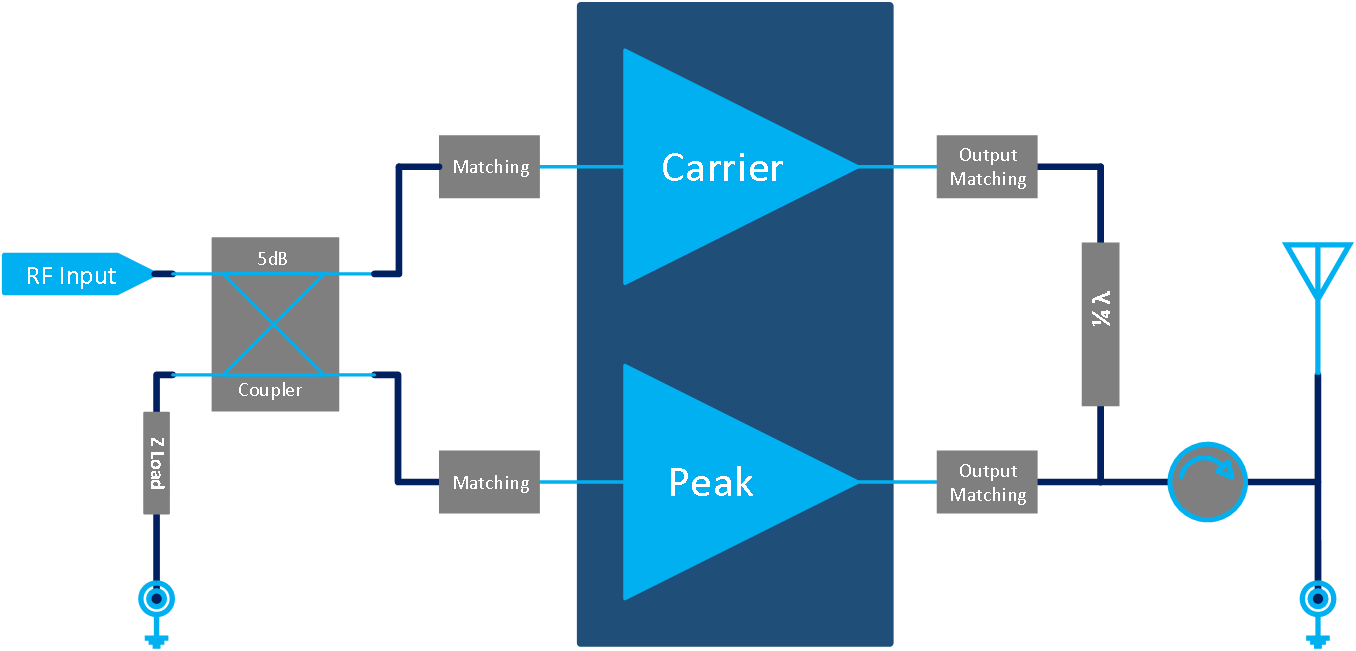

3400MHz-3600MHz 20W Final Solution(圖2)

Package Type: 780-4




CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@44.1dBm

DE (%)@44.1dBm

ACLR (dBc)@ 44.1dBm

3400

53.5

14.7

46.0

-32.0

3500

53.7

15.0

46.5

-35.0

360053.514.745.4-40.0


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator.
